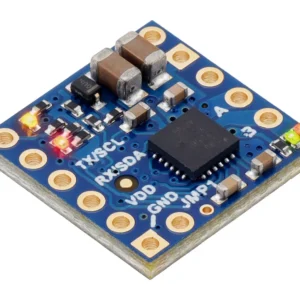

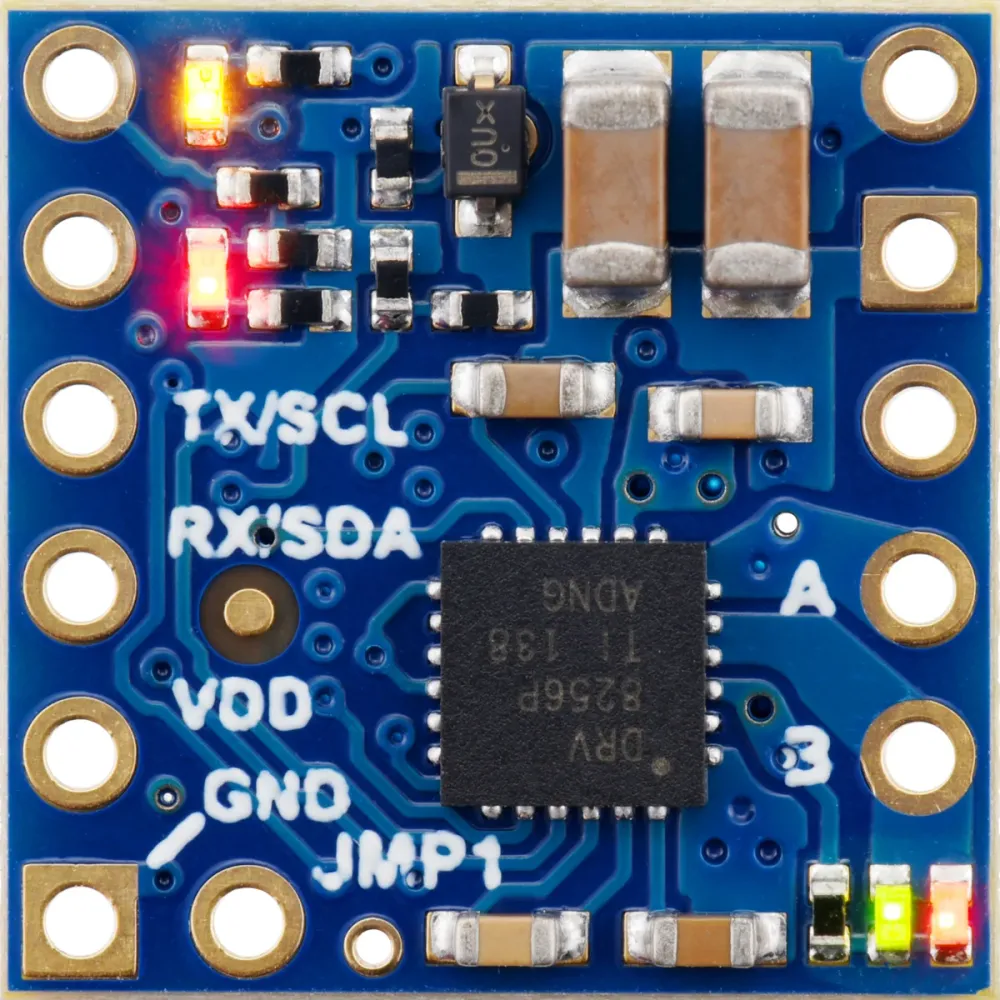

The Motoron M1T256 Single I²C Motor Controller offers a compact solution for controlling one DC motor using an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M1T256 operates from 4.5 V to 48 V and can deliver continuous output currents up to 2.2 A. This version ships with header pins included but not soldered in.
Specs:
- Channels: 1
- Model: Motoron M1T256
- Control interface: I²C
- Minimum operating voltage: 4.5V
- Maximum operating voltage: 48V
- Continuous output current per channel: 2.2A
- Peak output current per channel: 6.4A
- Reverse voltage protection?: Y
- Header pins soldered?: N
