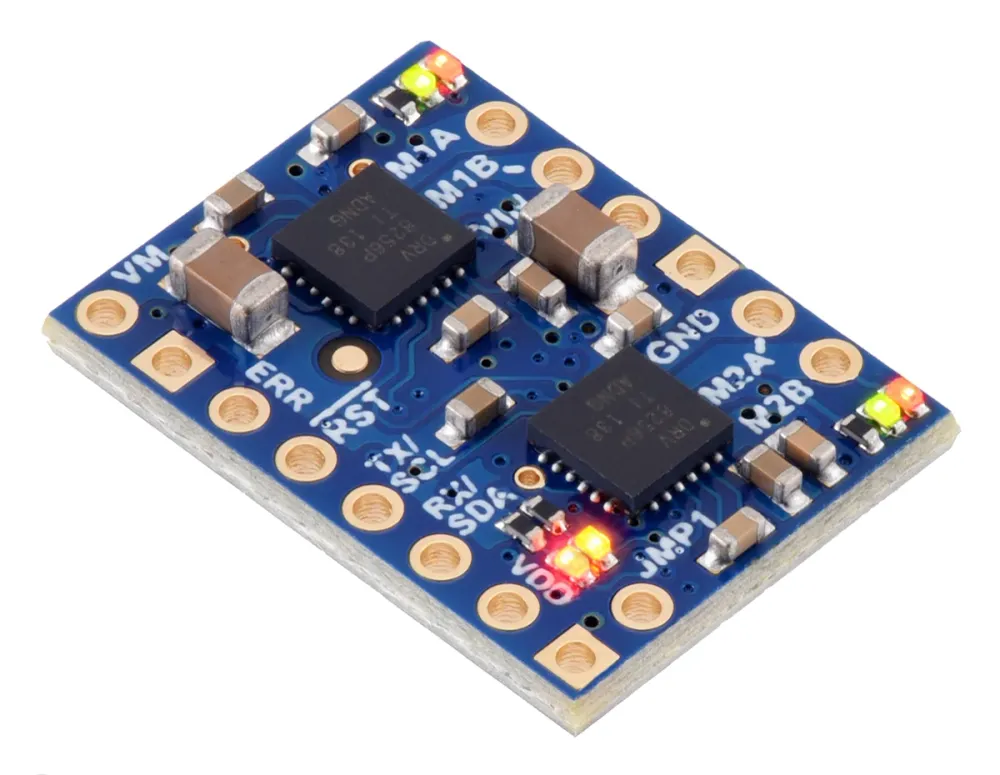

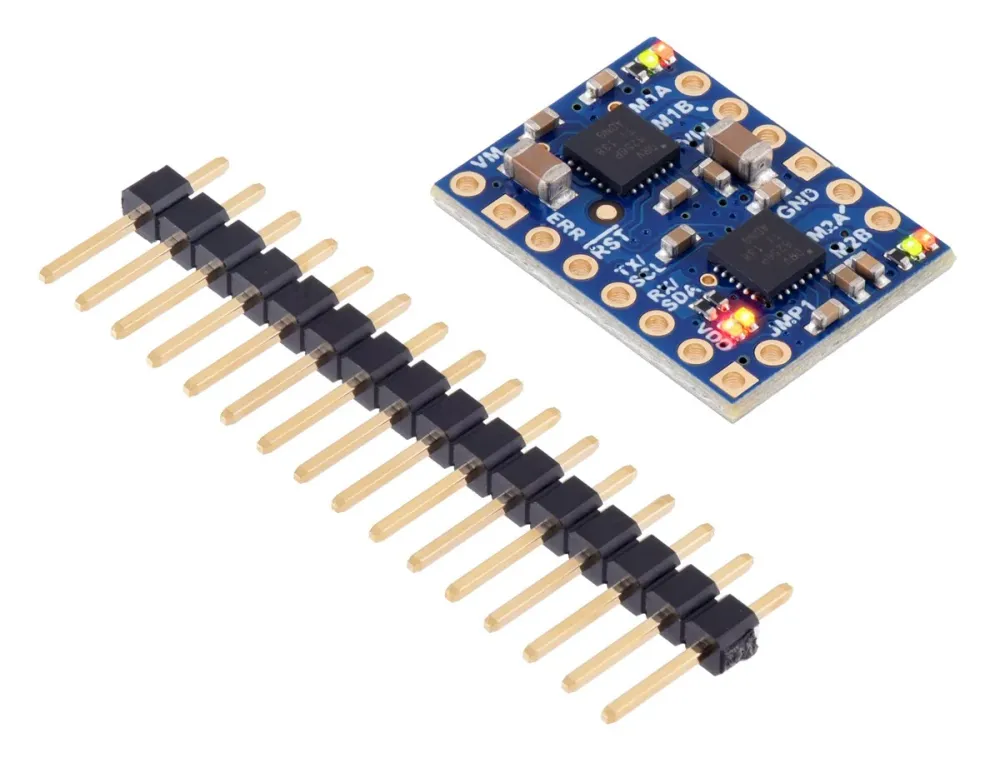

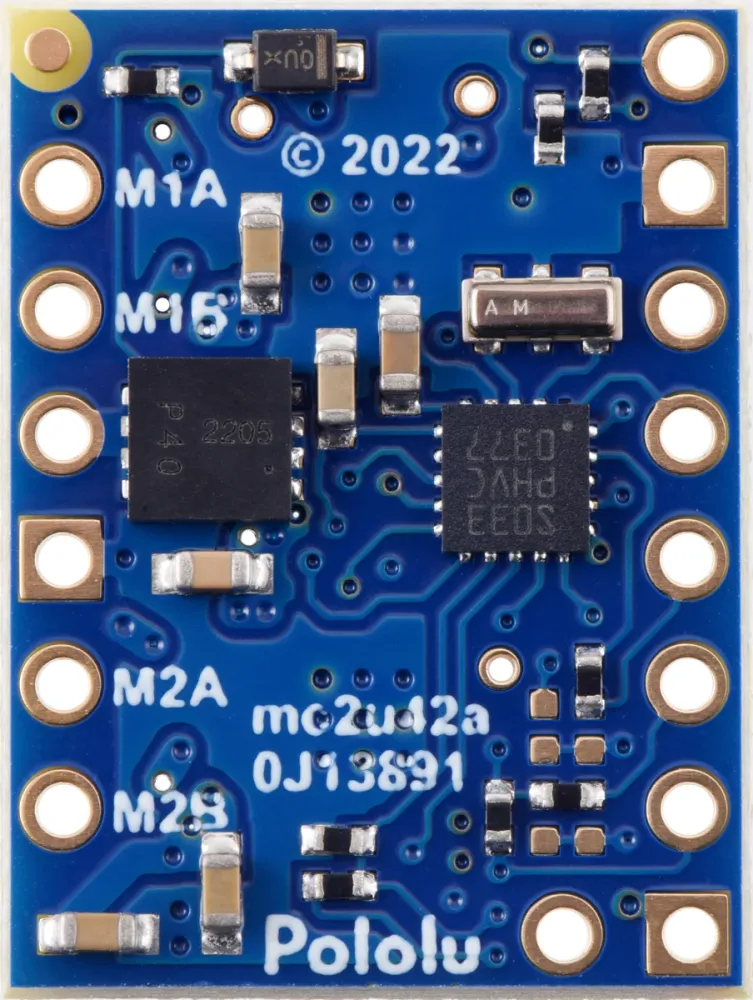

The Motoron M2U256 Dual I²C Motor Controller offers a compact solution for controlling two DC motors using a UART serial interface. Multiple Motoron controllers can be connected to the same serial bus, making it easy to expand a system with additional motors. The M2U256 operates from 4.5 V to 48 V and can deliver continuous output currents up to 1.8 A per motor. This version ships with header pins included but not soldered in.
Specs:
- Channels: 2
- Model: Motoron M2U256
- Control interface: non-inverted TTL serial (UART)
- Minimum operating voltage: 4.5V
- Maximum operating voltage: 48V
- Continuous output current per channel: 1.8A
- Peak output current per channel: 6.4A
- Reverse voltage protection?: Y
- Header pins soldered?: N
